IMAX 70mm vs Digital IMAX Explained

The real difference between analog 15/70mm IMAX film and digital IMAX (xenon and laser): aspect ratio, resolution, brightness, availability, and which one to choose.

IMAX 70mm vs Digital IMAX Explained

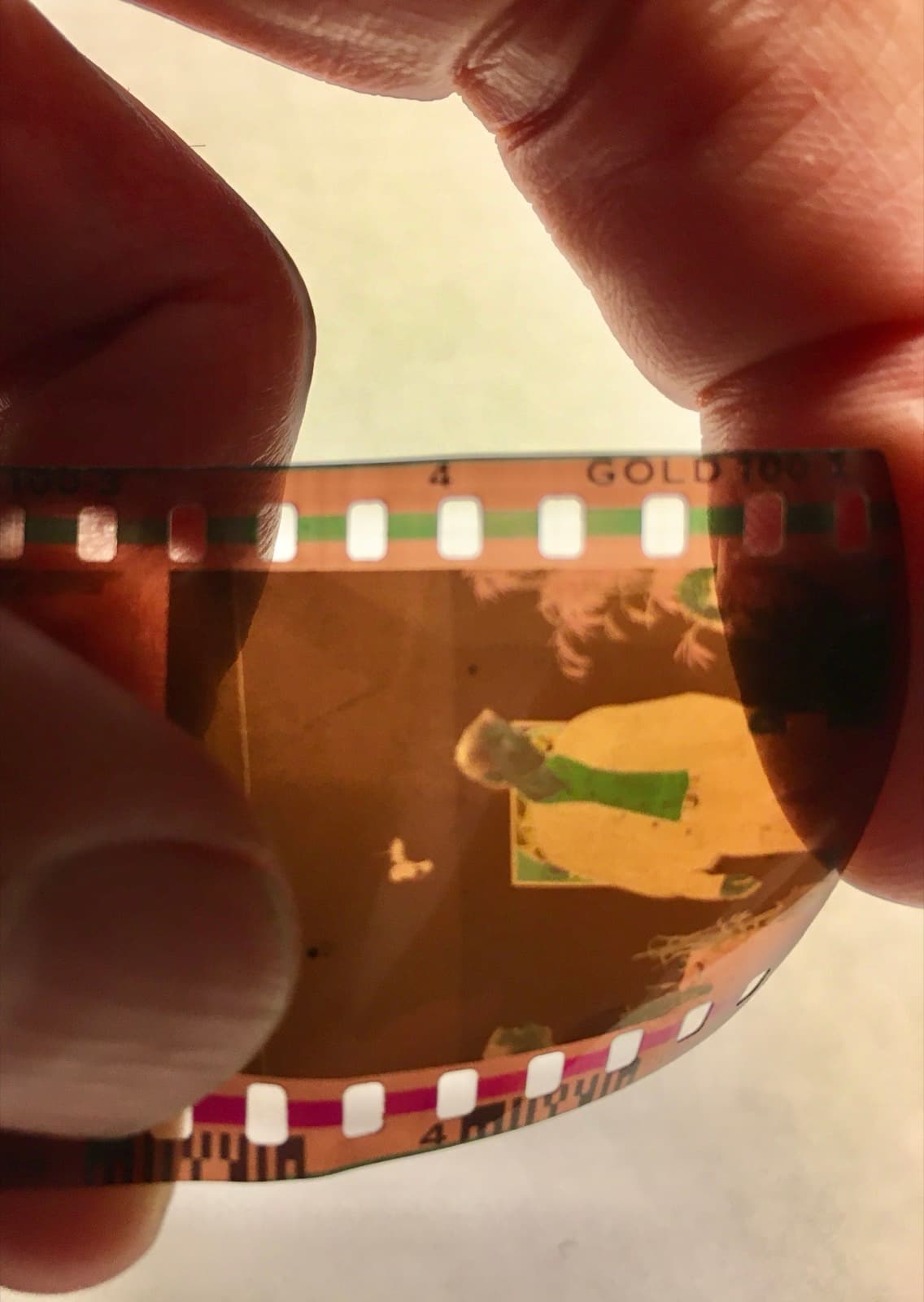

Photo: Pittigrilli, CC BY-SA 4.0 / Wikimedia Commons

There Are Really Two IMAXes

When people argue about IMAX, they are usually talking about two very different things: analog 15/70mm IMAX film and the much more common digital IMAX. They look different, cost different amounts to run, and exist in very different numbers.

35mmAcademy 4-perf22×16mmSuper 353-perf24.9×18.7mmIMAX 15/7015-perf horizontal70.4×52.6mm≈ 10×the negative area of 35mm
A 15/70mm IMAX negative captures roughly 10× the area of a 35mm frame - the root of true IMAX's resolution advantage.

IMAX 70mm Film (the “true” IMAX)

IMAX film runs 70mm stock horizontally with 15 perforations per frame. Each frame is enormous - the digital equivalent of roughly 18K resolution - and it projects in the tall 1.43:1 aspect ratio that fills the screen top to bottom. Only a few dozen venues worldwide can still project it. Read the deeper mechanics in our IMAX guide.

Digital IMAX (Xenon and Laser)

Digital IMAX uses dual projectors. The older xenon systems are dual-2K; modern IMAX with Laseris dual-4K with far higher brightness, contrast and a wider colour gamut. Digital IMAX typically projects 1.90:1 - taller than standard widescreen, but not as tall as film's 1.43:1.

PropertyIMAX 70mm FilmDigital IMAX (Laser)
Aspect ratio1.43:11.90:1
Resolution~18K equivalentDual 4K
BrightnessVery high (lamp)Highest (laser)
AvailabilityRare (dozens of sites)Common
Best forNolan film epicsMost blockbusters

🎞️ How to tell which you're buying

Tickets sometimes read “IMAX 70mm” or “IMAX with Laser.” If a film was shot on IMAX film (e.g. Oppenheimer, Interstellar), a 70mm screening is the purest way to see it.

So Which Is Better?

For films shot on 15/70mm, true IMAX film is unmatched in resolution and frame height. For everything else - and for brightness, color and consistency - IMAX with Laser is superb and far easier to find. Either way, your seat decides how much of that quality reaches your eyes: check the best seat in IMAX and the viewing distance calculator.

Further reading: IMAX (Wikipedia) · 70mm film (Wikipedia)

Frequently Asked Questions

What is the difference between IMAX 70mm and digital IMAX?
IMAX 70mm is analog film running 15 perforations per frame in a 1.43:1 ratio with roughly 18K-equivalent resolution. Digital IMAX uses dual projectors (xenon dual-2K or laser dual-4K), usually in a 1.90:1 ratio. Film is sharper and taller; digital laser is brighter and far more available.
Is IMAX 70mm better than IMAX with Laser?
For films actually shot on 15/70mm, true IMAX film is unmatched in resolution and frame height. For brightness, color consistency and availability, IMAX with Laser is excellent and much easier to find.
How do I know if my cinema has real IMAX 70mm?
Only a few dozen venues worldwide can project 15/70mm film. Tickets are usually labelled 'IMAX 70mm'. Most IMAX auditoriums are digital (xenon or laser).
